Covestro Bayblend Polycarbonate
Place of Origin：China
Brand Name：Covestro/Bayblend
Model Number：FR1514
Color：Nature
Grade：FR Grades / Non Reinforced
Quality：High-quality
Application：Energized Parts
Material：PC+ABS
Search Keyword：Covestro FR1514
Feature：Heat resistant, Flame retardant
Flame Retardant：UL94-V0
Product Description

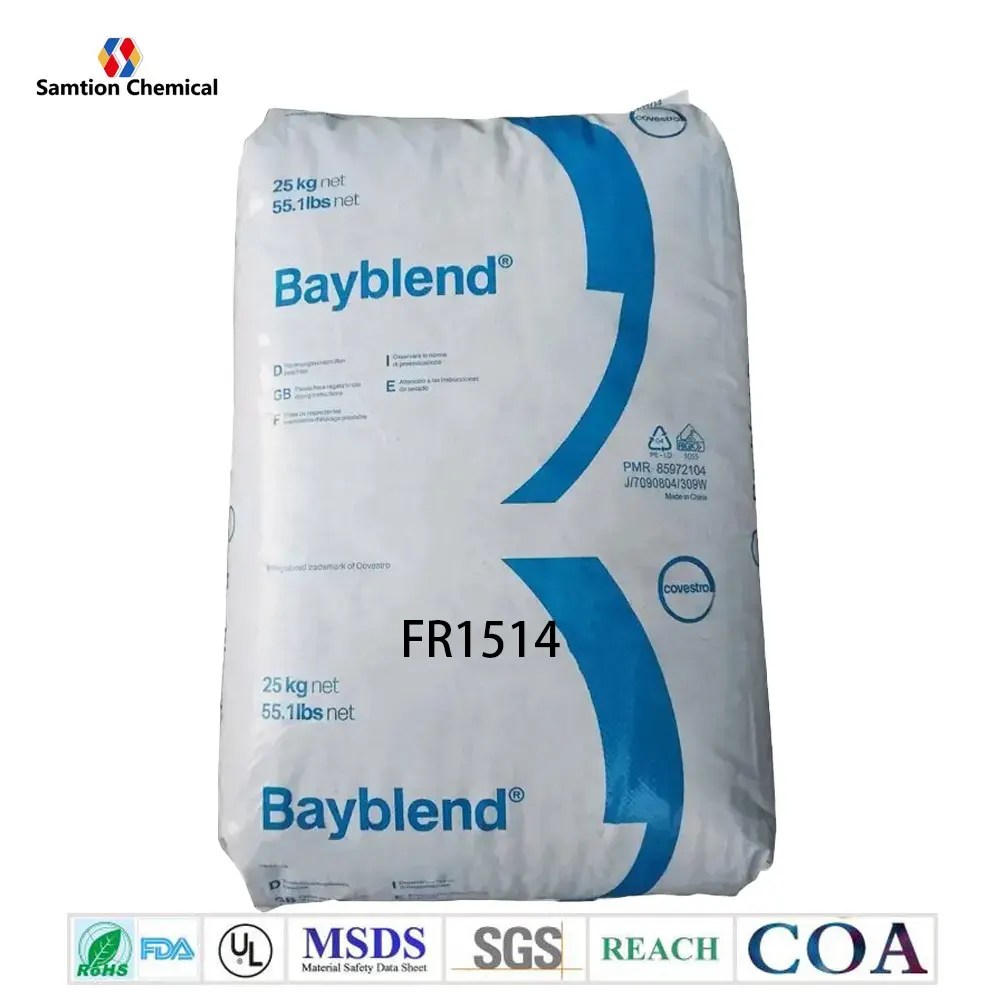

Bayblend® FR1514
(PC+ABS)-Blend; flame retardant; high heat resistance; Vicat/B 120 temperature = 136 °C; ball indentation temperature >= 125 °C; UL recognition 94 V-0 at 1.5 mm; suitable as supporting material for energized parts
(PC+ABS)-Blend; flame retardant; high heat resistance; Vicat/B 120 temperature = 136 °C; ball indentation temperature >= 125 °C; UL recognition 94 V-0 at 1.5 mm; suitable as supporting material for energized parts
Rheological properties
| Property Name | Standard | Test condition | Unit | Value |
|---|---|---|---|---|
| Melt viscosity | b.o. ISO 11443-A | 1000 s^-1^/ 260 °C | Pa*s | 450 |
| Melt volume-flow rate | ISO 1133 | 260 °C/ 5 kg | cm³/10 min | 19 |
| Molding shrinkage, normal | b.o. ISO 2577 | 150x105x3 mm/ 260 °C / MT 80 °C | % | 0.5 – 0.7 |
| Molding shrinkage, parallel | b.o. ISO 2577 | 150x105x3 mm/ 260 °C / MT 80 °C | % | 0.5 – 0.7 |
Mechanical properties (23 °C/50 % r. h.)
| Property Name | Standard | Test condition | Unit | Value |
|---|---|---|---|---|
| Izod impact strength | ISO 180/U | 23 °C | kJ/m² | N |
| Izod notched impact strength | ISO 180/A | 23 °C | kJ/m² | 45 |
| Izod notched impact strength | ISO 180/A | -30 °C | kJ/m² | 15 |
| Strain at break | b.o. ISO 527-1,-2 | 50 mm/min | % | > 50 |
| Stress at break | ISO 527-1,-2 | 50 mm/min | MPa | 57 |
| Tensile modulus | ISO 527-1,-2 | 1 mm/min | MPa | 2400 |
| Yield strain | ISO 527-1,-2 | 50 mm/min | % | 5 |
| Yield stress | ISO 527-1,-2 | 50 mm/min | MPa | 63 |
Electrical properties (23 °C/50 % r. h.)
| Property Name | Standard | Test condition | Unit | Value |
|---|---|---|---|---|
| Comparative tracking index CTI | IEC 60112 | Solution A | Rating | 350 |
| Dissipation factor | IEC 60250 | 1 MHz | 10^-4^ | 85 |
| Dissipation factor | IEC 60250 | 100 Hz | 10^-4^ | 20 |
| Electrical strength | IEC 60243-1 | 1 mm | kV/mm | 35 |
| Relative permittivity | IEC 60250 | 1 MHz | 3.1 | |
| Relative permittivity | IEC 60250 | 100 Hz | 3.2 | |
| Surface resistivity | IEC 60093 | Ohm | 1E17 | |
| Volume resistivity | IEC 60093 | Ohm*m | 1E15 |
More information please download the datasheet ：Covestro Bayblend FR1514 datasheet
Company Profile
1.Professional focus
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
2.Perfect service
We have served many high-quality and excellent domestic and foreign enterprises, and We understand the customers’purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
3. Inventory supporting
Abundant inventory supporting resources, which are located in Guangzhou, Dongguan, Shenzhen free trade zone and Hong Kong. It has set up warehouses to stock goods, with a standing stock of more than 1000 tons, which can meet the timely spot purchase demand of customers and ensure the reliability and stability of the customer’s material supply chain.
4.Logistics distribution
We have long-term and stable logistics partners. According to the needs of customers, we formulate efficient distribution plans and deliver high-quality products to customers in time.
5. Speed advantage
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
6. Small batch type selection technical support
Accept small batch orders of 5kg at least; The rofessional engineer team can cooperate with customers to carry out material selection in the early stage of production, and provide corresponding material recommendations ccording to customer production and product requirements
7. Quality assurance
Our products are all from well-known manufacturers. Each batch of materials has various inspection reports and certificates including original factory certificate, MSDS, ROHS, SGS, reach,, EU, UL, COC / COA, etc.
