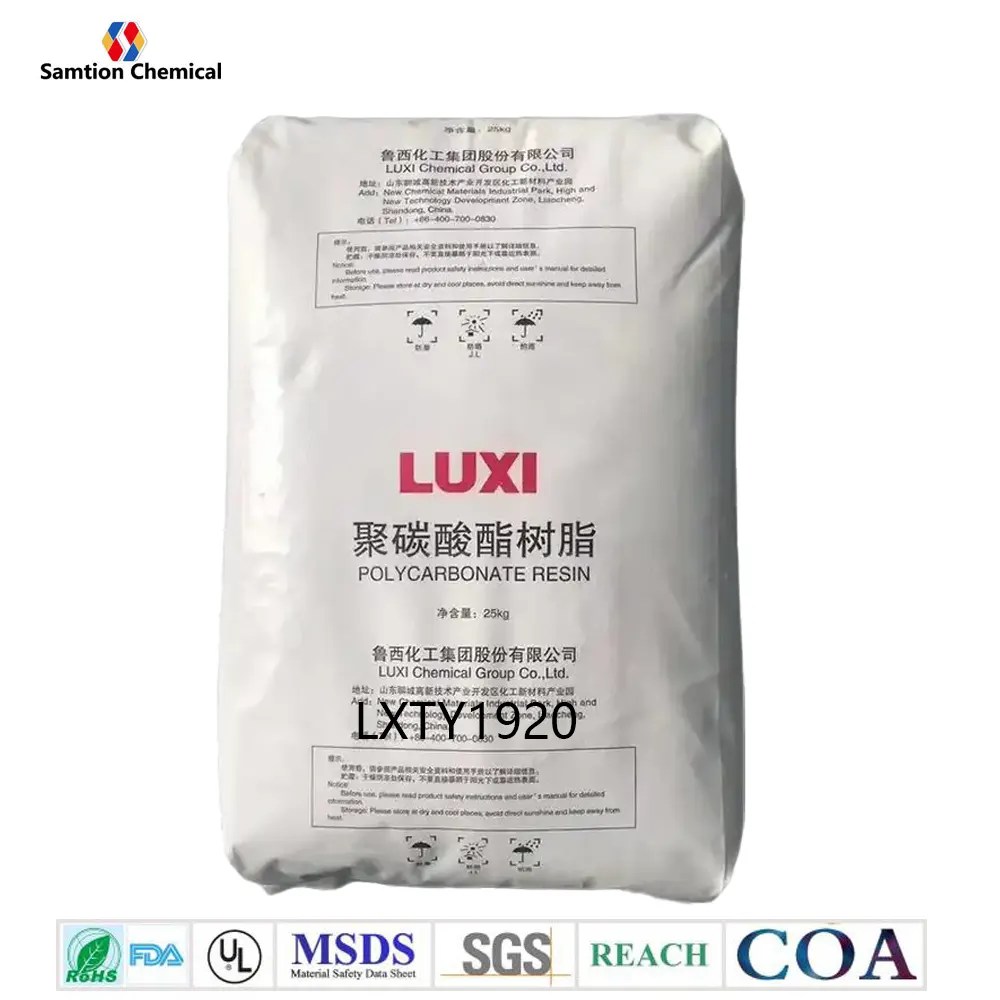

LUXI PC LXTY1920
Place of Origin：China
Brand Name：LUXI
Model Number：LXTY1920
Color：Trasparent
Grade：Injection Grade
Certificates：ROSH REACH F1 RTI
Flame Retardant：UL94 HB V0 V1 V2
Application：General
Properties：High Toughness
Brand：LUXI
Quality：High-quality
Material：100% Vrigin PC Material
Brand Name：LUXI
Model Number：LXTY1920
Color：Trasparent
Grade：Injection Grade
Certificates：ROSH REACH F1 RTI
Flame Retardant：UL94 HB V0 V1 V2
Application：General
Properties：High Toughness
Brand：LUXI
Quality：High-quality
Material：100% Vrigin PC Material
Product Description
Luxi General purpose PC
Luxi General purpose PC are clear pellets and could be used for extrusion, injection, blowing, compounding, etc.
Luxi General purpose PC are clear pellets and could be used for extrusion, injection, blowing, compounding, etc.
|
General Purpose PC Data Sheet |
||||
| Luxi General purpose PC are clear pellets and could be used for extrusion, injection, blowing, compounding, etc. | ||||
| Properties | Standards | Test methods | Unit | LXTY1920 |
| Molecular weight | / | GPC absolute molecular | / | 21000 |
| weight | ||||
|
Physical properties |
||||
| MFR | ISO 1133 | 300℃，1.2kg | g/10min | 20 |
| Specific gravity | ISO 1183 | / | g/cm3 | 1.2 |
| ater absorption | ISO 62 | 23℃，24h | % | 0.2 |
| Mold shrinkage | ISO 294 | 2mm,2mm, along flow direction | % | 0.5-0.7 |
|
Mechanical properties |
||||
| Yield | ISO 527 | 50mm/min | MPa | 60 |
| strength Tensile strength at break |
ISO 527 | 50mm/min | MPa | 68 |
| Strain at Break | ISO 527 | 50mm/min | % | ＞120 |
| Tensile modulus | ISO 527 | 1mm/min | MPa | 2400 |
| Flexural strength | ISO 178 | 2mm/min | MPa | 90 |
| Flexural modulus | ISO 178 | 2mm/min | MPa | 2300 |
| Charpy notched impact strength | ISO 179 | 23℃ | kJ/m2 | 62 |
| Izod notched impact strength | ISO 180 | 23℃ | kJ/m2 | 55 |
|
Thermal properties |
||||
| Temperature of deflection under load |
ISO 75 | 1.80MPa, 4.0mm 1.80MPa, unannealed,4.0mm |
℃ | 125 |
| Vicat softening temperature |
ISO 306 | B12，4.0mm B120, unannealed, 4.0mm |
℃ | 145 |
|
Optical properties |
||||
| Luminous | ASTM | 3.2mm | % | 89.0 |
| Haze transmittance | ADS10T0M3 | 3.2mm | % | ＜0.5 |
| Yellowness index | ISDO110702323 | 380-780nm | / | ＜1.4 |
|
Electrical properties |
||||
| Volume | IEC 60093 | 5min | Ω cm | 3.0×1017 |
| rDielectricesistivity | IEC 60250 | 1MHz | / | 2.7 |
| Dielectric constant strength | IEC 60243 | 1mm | kV/mm | 30 |
| Dielectric dissipation factor | IEC 60250 | 1MHz | / | 1.5×10-2 |
|
Others |
||||
| Flammability | UL94 | 1.5mm | / | HB |
Injection molding process
Blow molding process and modification process
Extrusion process
Company Profile
1.Professional focus
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
2.Perfect service
We have served many high-quality and excellent domestic and foreign enterprises, and We understand the customers’purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
3. Inventory supporting
Abundant inventory supporting resources, which are located in Guangzhou, Dongguan, Shenzhen free trade zone and Hong Kong. It has set up warehouses to stock goods, with a standing stock of more than 1000 tons, which can meet the timely spot purchase demand of customers and ensure the reliability and stability of the customer’s material supply chain.
4.Logistics distribution
We have long-term and stable logistics partners. According to the needs of customers, we formulate efficient istribution plans and deliver high-quality products to customers in time.
5. Speed advantage
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
6. Small batch type selection technical support
Accept small batch orders of 5kg at least; The rofessional engineer team can cooperate with customers to carry out material selection in the early stage of production, and provide corresponding material recommendations ccording to customer production and product requirements
7. Quality assurance
Our products are all from well-known manufacturers. Each batch of materials has various inspection reports and certificates including original factory certificate, MSDS, ROHS, SGS, reach,, EU, UL, COC / COA, etc.
