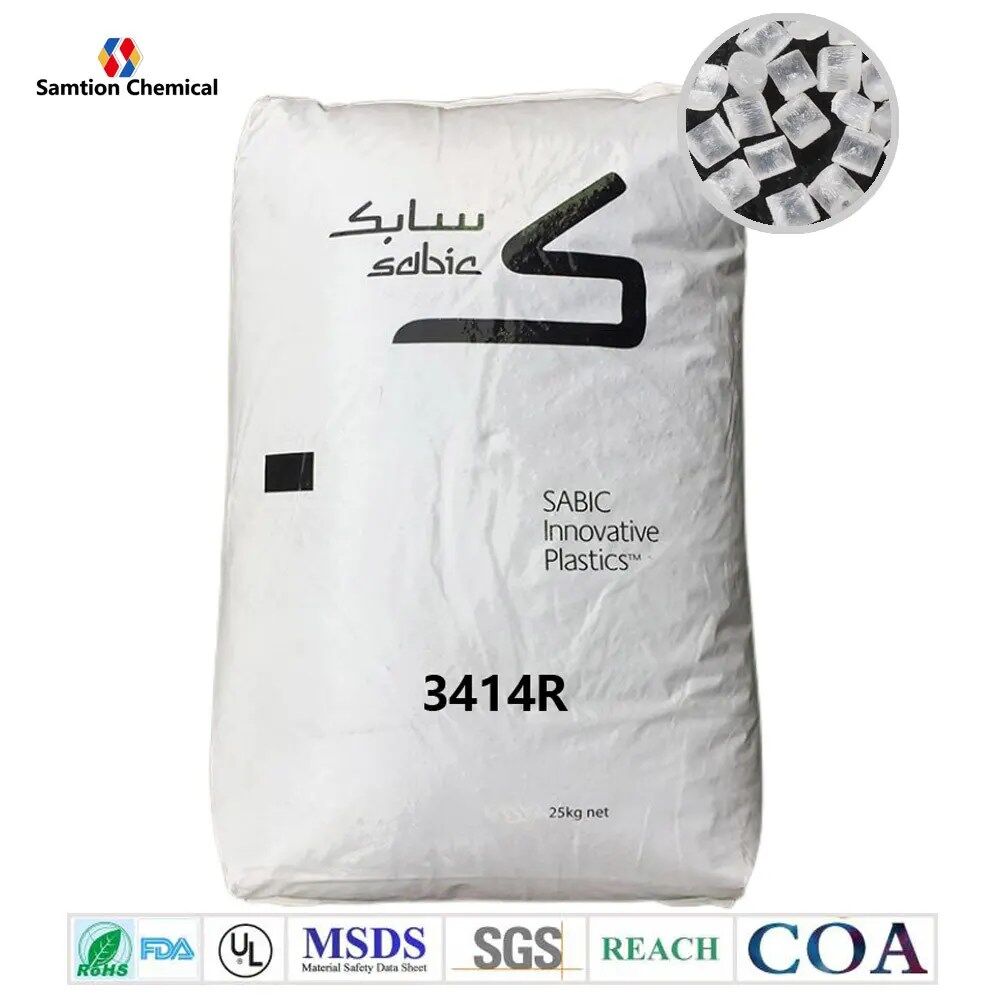

Sabic Lexan PC 3414R Description
40% GR, provides improved mechanical properties and UL94V-1 rated at 0.058″. Internal mold release added.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, brk, Type I, 5 mm/min | 158 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 3 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 186 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 9650 | MPa | ASTM D 790 |
| Hardness, Rockwell M | 93 | – | ASTM D 785 |
| Hardness, Rockwell R | 119 | – | ASTM D 785 |
| Taber Abrasion, CS-17, 1 kg | 32 | mg/1000cy | ASTM D 1044 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1281 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 133 | J/m | ASTM D 256 |
| Tensile Impact, Type “S” | 67 | kJ/m² | ASTM D 1822 |
| Falling Dart Impact (D 3029), 23°C | 6 | J | ASTM D 3029 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 165 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 154 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 146 | °C | ASTM D 648 |
| CTE, -40°C to 95°C, flow | 1.62E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.52 | – | ASTM D 792 |
| Specific Volume | 0.65 | cm³/g | ASTM D 792 |
| Density | 1.522 | g/cm³ | ASTM D 792 |
| Water Absorption, 24 hours | 0.12 | % | ASTM D 570 |
| Water Absorption, equilibrium, 23C | 0.23 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.1 – 0.2 | % | SABIC Method |
| Melt Flow Rate, 300°C/5.0 kgf | 12.6 | g/10 min | ASTM D 1238 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | >1.E+17 | Ohm-cm | ASTM D 257 |
| Dielectric Strength, in air, 3.2 mm | 17.7 | kV/mm | ASTM D 149 |
| Relative Permittivity, 50/60 Hz | 3.53 | – | ASTM D 150 |
| Relative Permittivity, 1 MHz | 3.48 | – | ASTM D 150 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-1 Flame Class Rating (3) | 1.11 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 2.99 | mm | UL 94 |
| CSA (See File for complete listing) | LS88480 | File No. | CSA LISTED |
| Source GMD, last updated:12/29/1999 | |||
For more information please download the datasheet
