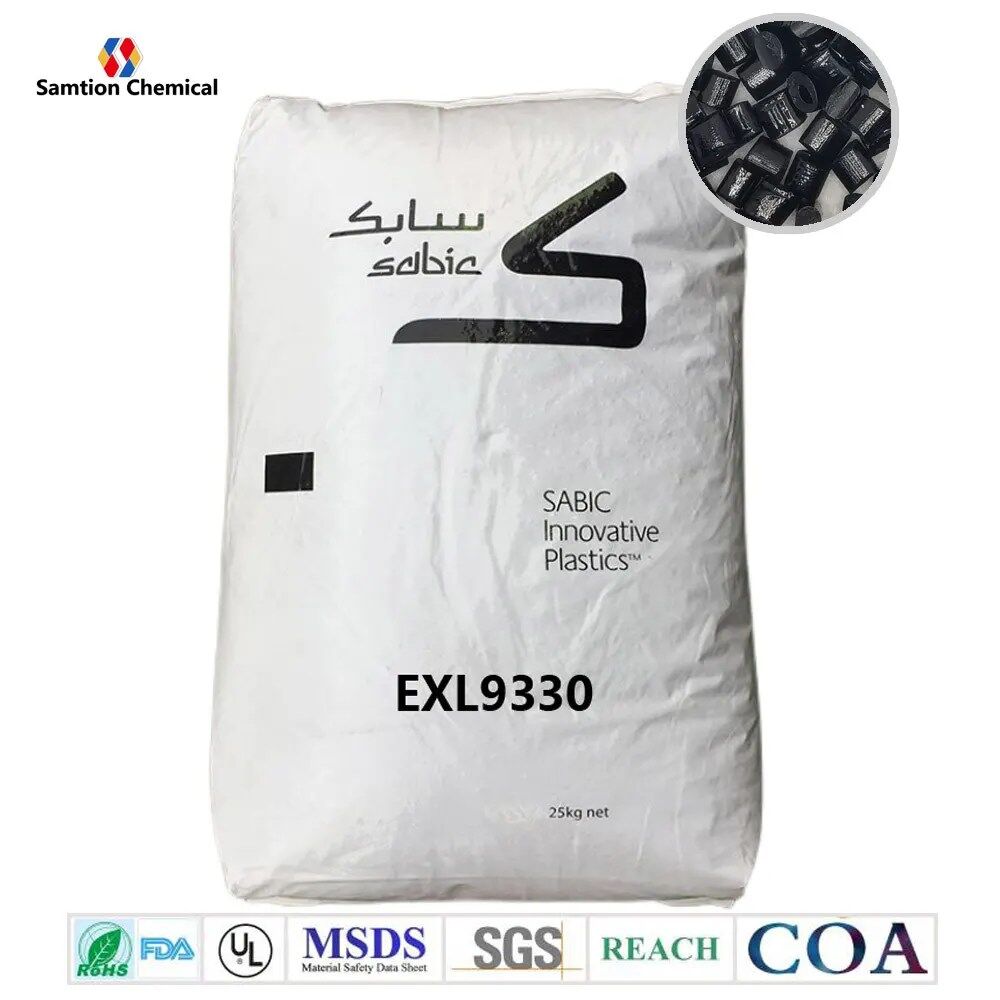

Sabic Lexan PC EXL9330 Description Lexan* EXL9330 is a glass reinforced,flame retardant(FR)grade with non brominated and non chlorinated FR systems and UV stablization packages. This product is intended for applications to meet WEEE/RoHS regulations as well as various voluntary environmental labels.
Sabic Lexan PC EXL9330 Characteristic
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 58 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 61 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 6 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 130 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2100 | MPa | ASTM D 638 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 801 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 678 | J/m | ASTM D 256 |
| Izod Impact, notched, -50°C | 587 | J/m | ASTM D 256 |
| Izod Impact, notched, 23°C, 6.4mm | 640 | J/m | ASTM D 256 |
| Izod Impact, double-gated, 23°C | 1068 | J/m | SABIC Method |
| Instrumented Impact Total Energy, 23°C | 52 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 142 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 134 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 120 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 124 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 125 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 115 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 120 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.18 | – | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 – 0.8 | % | SABIC Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.4 – 0.8 | % | SABIC Method |
| Melt Flow Rate, 300°C/1.2 kgf | 10 | g/10 min | ASTM D 1238 |
| Density | 1.19 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.35 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.15 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 9 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Dielectric Strength, in oil, 3.2 mm | 17 | kV/mm | ASTM D 149 |
| Relative Permittivity, 50/60 Hz | 2.95 | – | ASTM D 150 |
| Relative Permittivity, 1 MHz | 2.9 | – | ASTM D 150 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.49 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 2.99 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 1 | mm | IEC 60695-2-12 |
| Glow Wire Ignitability Temperature, 1.0 mm | 825 | °C | IEC 60695-2-13 |
| Oxygen Index (LOI) | 35 | % | ISO 4589 |
| UV-light, water exposure/immersion | F1 | – | UL 746C |
| Source GMD, last updated:08/27/1999 | |||
