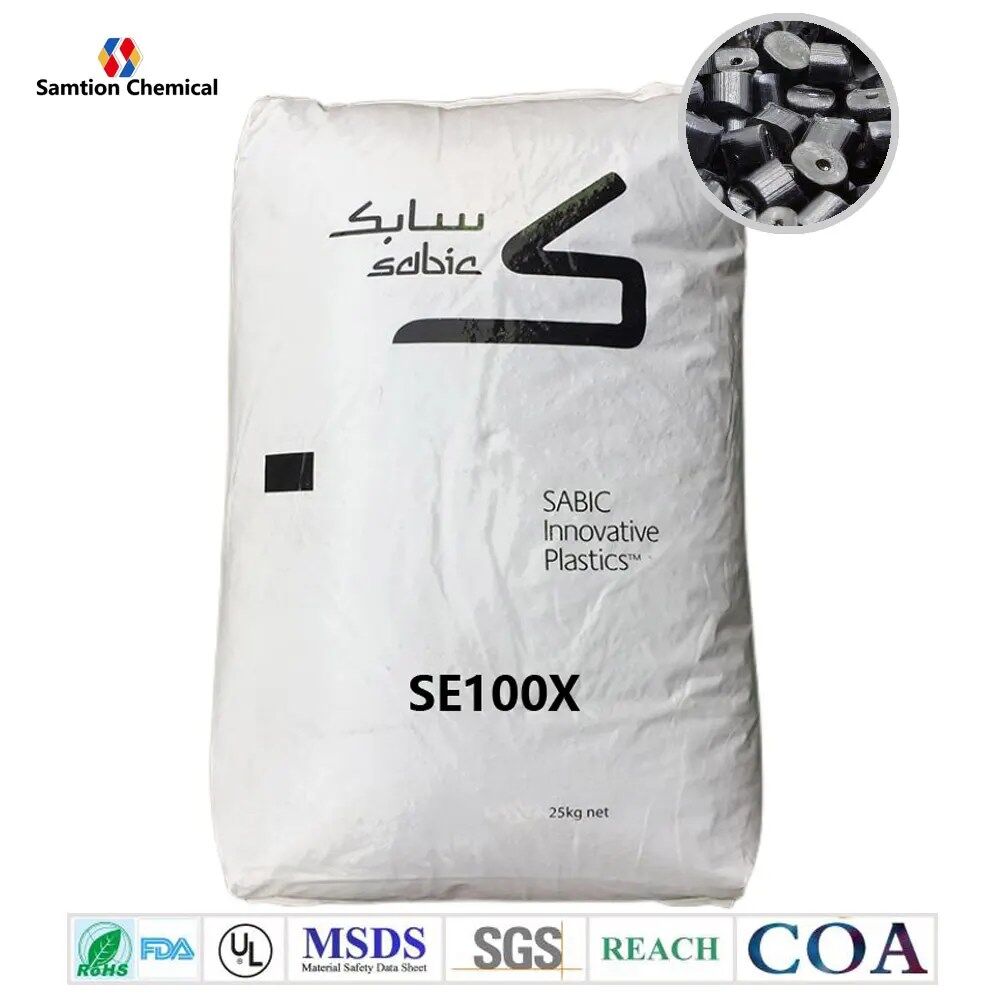

Sabic Noryl SE100X DESCRIPTION
Sabic NoryL SE100X flame retardant PPE+PS blend.It is suitable for E/E market indoor/outdoor applications. It is Nonbrominated, nonchlorinated, flame retarded. UL94 V1, UL746C F1. NORYL SE100X
Property
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 57 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 46 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 6.5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 25 | % | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 82 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 2300 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 256 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 90 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 40 | J | ASTM D 3763 |
| Instrumented Impact Energy @ peak, -30 | 16 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 102 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 92 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 95 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 80 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 95 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.1 | – | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 – 0.7 | % | SABIC Method |
| Mold Shrinkage on Tensile Bar, xflow (2) | 0.5 – 0.7 | % | SABIC Method |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 3.1E+16 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | >1.E+15 | Ohm | ASTM D 257 |
| Dielectric Strength, in oil, 3.2 mm | 17.9 | kV/mm | ASTM D 149 |
| Relative Permittivity, 50/60 Hz | 2.66 | – | ASTM D 150 |
| Relative Permittivity, 1 MHz | 2.57 | – | ASTM D 150 |
| Dissipation Factor, 50/60 Hz | 0.006 | – | ASTM D 150 |
| Dissipation Factor, 1 MHz | 0.0026 | – | ASTM D 150 |
| Arc Resistance, Tungsten {PLC} | 7 | PLC Code | ASTM D 495 |
| High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 1 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-1 Flame Class Rating (3) | 1.47 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 5.99 | mm | UL 94 |
| Oxygen Index (LOI) | 32.5 | % | ASTM D 2863 |
| Radiant Panel Listing | YES | – | UL Tested |
| UV-light, water exposure/immersion | F1 | – | UL 746C |
| Source GMD, last updated:01/05/2000 | |||
Processing
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 75 – 80 | °C |
| Drying Time | 3 – 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 – 275 | °C |
| Nozzle Temperature | 250 – 275 | °C |
| Front – Zone 3 Temperature | 240 – 275 | °C |
| Middle – Zone 2 Temperature | 225 – 270 | °C |
| Rear – Zone 1 Temperature | 215 – 265 | °C |
| Mold Temperature | 55 – 75 | °C |
| Back Pressure | 0.3 – 0.7 | MPa |
| Screw Speed | 20 – 100 | rpm |
| Shot to Cylinder Size | 30 – 70 | % |
| Vent Depth | 0.038 – 0.051 | mm |
| Source GMD, last updated:01/05/2000 | ||
