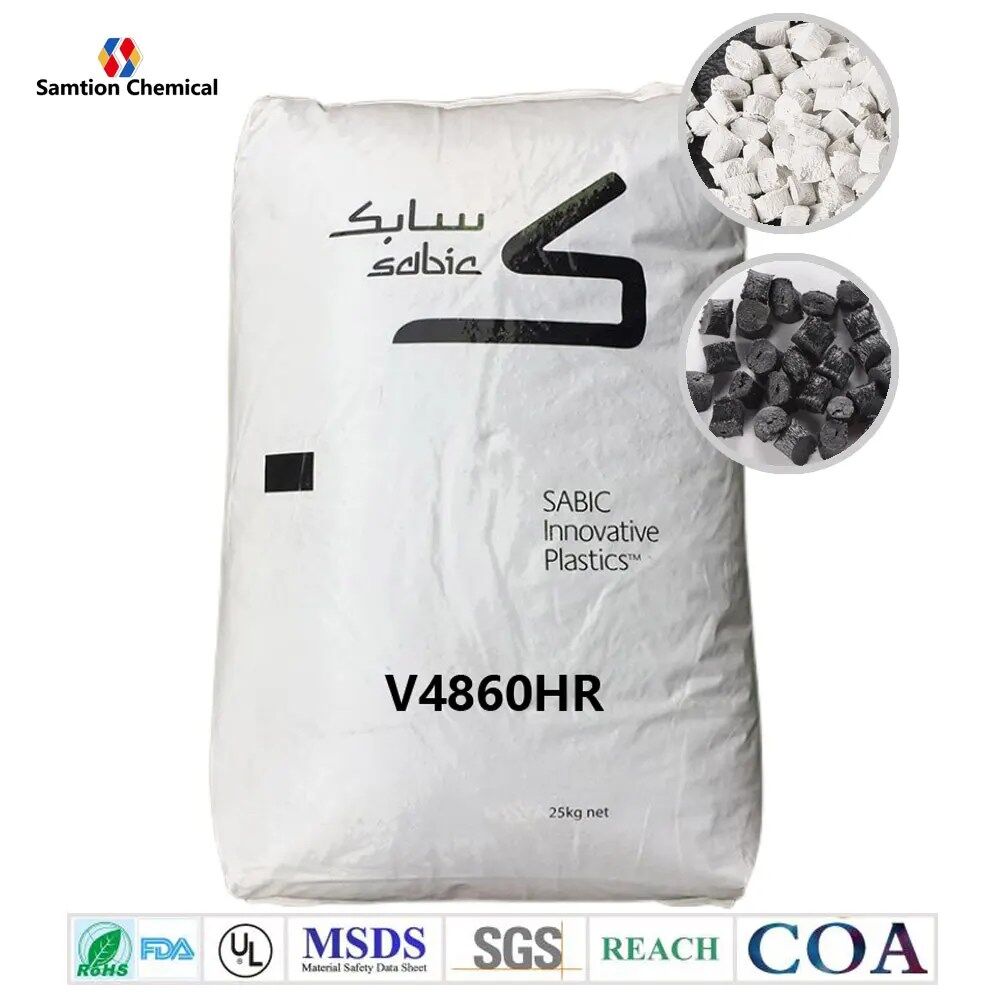

Sabic Valox V4860HR DESCRIPTION
Sabic Valox V4860HR resin is 30% glass reinforced PBT, UL94 V-0 rated, Hydrolytically stable, Impact Modified.
Property
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 116 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 114 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.2 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 2.3 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 9750 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 174 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 2 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 6740 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 111 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 110 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 2.1 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2.1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 9440 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 183 | MPa | ISO 178 |
| Flexural Stress, break, 2 mm/min | 182 | MPa | ISO 178 |
| Flexural Strain, break, 2 mm/min | 2.9 | % | ISO 178 |
| Flexural Modulus, 2 mm/min | 7870 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 90 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 74 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 13 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 10 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 8 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 10 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 176 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 197 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 221 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 205 | °C | ASTM D 648 |
| CTE, -40°C to 95°C, flow | 2.35E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 95°C, xflow | 1.14E-04 | 1/°C | ASTM E 831 |
| CTE, 23°C to 80°C, flow | 2.28E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 80°C, xflow | 1.19E-04 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, approximate maximum | 75 | °C | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 176 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 175 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 188 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.64 | – | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.18 – 0.21 | % | SABIC Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.75 – 0.94 | % | SABIC Method |
| Melt Flow Rate, 250°C/5.0 kgf | 17.8 | g/10 min | ASTM D 1238 |
| Density | 1.64 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.19 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.06 | % | ISO 62 |
| Melt Volume Rate, MVR at 250°C/5.0 kg | 12 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 0.8 | mm | UL 94 by GE |
| Source GMD, last updated:02/02/2005 | |||
Processing
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 – 4 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 230 – 260 | °C |
| Nozzle Temperature | 240 – 260 | °C |
| Front – Zone 3 Temperature | 240 – 260 | °C |
| Middle – Zone 2 Temperature | 230 – 250 | °C |
| Rear – Zone 1 Temperature | 220 – 240 | °C |
| Mold Temperature | 60 – 120 | °C |
| Back Pressure | 5 – 10 | MPa |
| Screw Speed | 20 – 100 | rpm |
| Shot to Cylinder Size | 30 – 70 | % |
| Vent Depth | 0.025 – 0.038 | mm |
| Source GMD, last updated:02/02/2005 | ||
