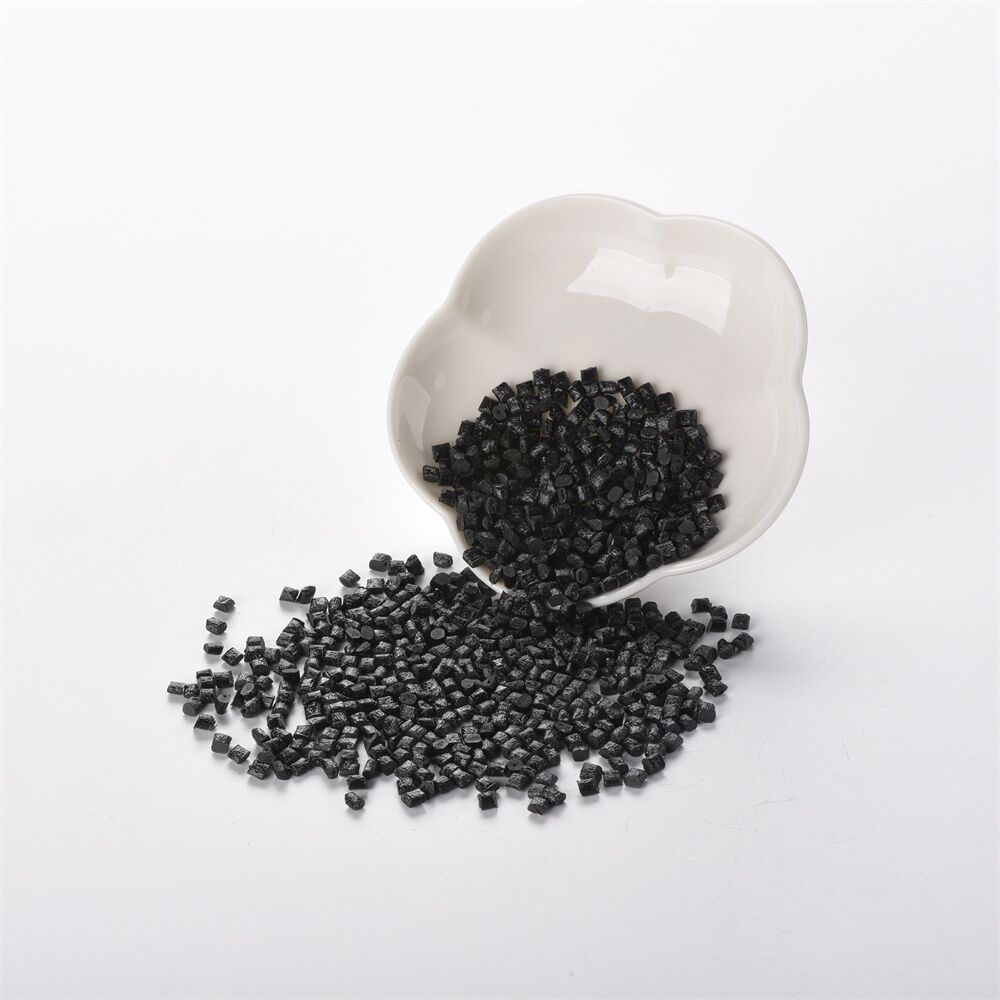

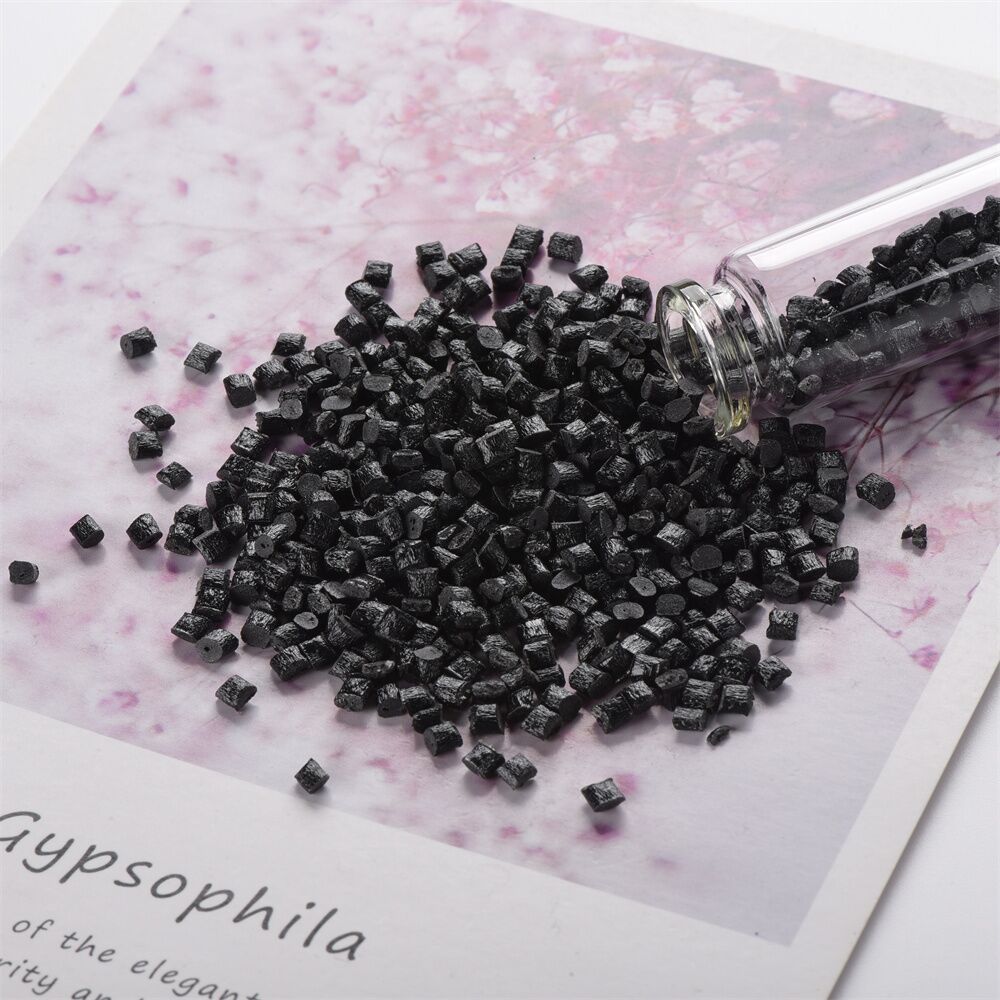

Samtion STFR50 PA66 Resin 25% GF Bromine Flame Retardant Injection Molding Used For Electronic Components

Samtion STFR50 resin is a polyamide 66 resin for injection molding. This resin is 25%GF Glass Fiber Reinforced, bromine flame retardant feature , and it is high glow wire common used for electronic components and household appliances.

Common Applications

Samtion PA66 STFR50

Place of Origin:China
Brand Name:Samtion
Model Number:STFR50
Featured:25%GF Glass Fiber, Bromine Flame Retardant
Color: Natural, Black
Grade: Injection Molding Grade
Application:Electronic Components and Household Appliances
Keywords:Samtion PA66/ Samtion STFR50/ PA66 STFR50
Material:PA66 Material Resin
Quality:High-quality
Package: 25kg/bag
Perfect alternative: Celanese Zytel FR50

STFR50 Description

PA66, also known as polyamide 66 or nylon 66, is a type of synthetic polymer belonging to the nylon family. It is a versatile material known for its high strength, rigidity, and thermal resistance. PA66 is used in various applications, including automotive components, electrical insulators, engineering plastics, and consumer goods.

This material offers excellent mechanical properties, good resistance to heat and chemicals, and is often chosen for its durability and reliability in demanding environments. Its inherent properties make it suitable for use in a wide range of industries, including automotive, electronics, industrial manufacturing, and consumer goods. PA66 can be found in products such as gears, bearings, electrical connectors, cable ties, and various structural components.

PA66 is commonly used in the production of injection-molded parts and is valued for its balance of mechanical strength, impact resistance, and resistance to wear and abrasion. It can also be reinforced with various additives such as glass fibers to further enhance its mechanical properties, making it a preferred material for a wide array of engineering applications.

Samtion STFR50 resin is a polyamide 66 resin for injection molding. This resin is 25%GF Glass Fiber Reinforced, bromine flame retardant feature , and it is high glow wire common used for electronic components and household appliances.

Samtion STTR50 is a Bromine-containing flame retardant and Glass fiber reinforced PA66 Material Resin. This type of composite offers enhanced mechanical and thermal properties compared to standard PA66, making it suitable for a wide range of applications requiring high strength and rigidity. It also exhibits enhanced resistance to heat and creep, making it ideal for use in structural components such as automotive parts, industrial machinery, electrical enclosures, and various mechanical components.


PA66 Datasheet

Test ItemsTesting StandardsUnit

PA66 ST3004

Halogen Free Flame Retardant

PA66 STRNH6605

Halogen-Free Flame Retardant Reinforcement

PA66 ST201FR

Australian Flame Retardant

ProportionASTM D792g/cm³1.1981.361.38
Shore HardnessASTM D2240HD818580
Tensile StrengthASTM D638MPa7213050
Elongation at BreakASTM D638%53.55
Bending StrengthASTM D790MPa11520385
Flexural ModulusASTM D790MPa310072502800
Impact Strength of Cantilever Beam NotchASTM D256KJ/㎡3.2125
Melting PointASTM D4591242245245
Recommended Drying TemperatureQCS80-9080-9080-90
Recommended Drying TimeQCSH3-44-53-4
Suggested Injection TemperatureQCS250-270260-270255-270

Data Sheet one

Test ItemsTesting StandardsUnit

PA66 ST201G30

Australian Flame Retardant Reinforcement

PA66 ST101G0

Glass Fiber Reinforced

PA66 STR2000HS

Toughened and Cold Resistant

ProportionASTM D792g/cm³1.61.381.1
Shore HardnessASTM D2240HD848478
Tensile StrengthASTM D638MPa12016560
Elongation at BreakASTM D638%2.5450
Bending StrengthASTM D790MPa19525588
Flexural ModulusASTM D790MPa825082502000
Impact Strength of Cantilever Beam NotchASTM D256KJ/㎡111316
Melting PointASTM D4591240250240
Recommended Drying TemperatureQCS80-9080-9080-90
Recommended Drying TimeQCSH3-43-44-5
Suggested Injection TemperatureQCS250-270270-290250-270
Data Sheet Two

More information please Contact Us :Samtion PA66 STFR50 Datasheet


Company Profile

1.Professional focus
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
2.Perfect service
We have served many high-quality and excellent domestic and foreign enterprises, and We understand the customers’purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
3. Inventory supporting
Abundant inventory supporting resources, which are located in Guangzhou, Dongguan, Shenzhen free trade zone and Hong Kong. It has set up warehouses to stock goods, with a standing stock of more than 1000 tons, which can meet the timely spot purchase demand of customers and ensure the reliability and stability of the customer’s material supply chain.
4.Logistics distribution
We have long-term and stable logistics partners. According to the needs of customers, we formulate efficient istribution plans and deliver high-quality products to customers in time.
5. Speed advantage
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
6. Small batch type selection technical support
Accept small batch orders of 5kg at least; The rofessional engineer team can cooperate with customers to carry out material selection in the early stage of production, and provide corresponding material recommendations ccording to customer production and product requirements
7. Quality assurance
Our products are all from well-known manufacturers. Each batch of materials has various inspection reports and certificates including original factory certificate, MSDS, ROHS, SGS, reach,, EU, UL, COC / COA, etc.
3ST201FR
Weight 25 kg
Dimensions 60 × 45 × 15 cm
Brand

Series

PA6/PA66

Model Number

STFR50

UL94 Flame Class

Glass Fiber Reinforced
