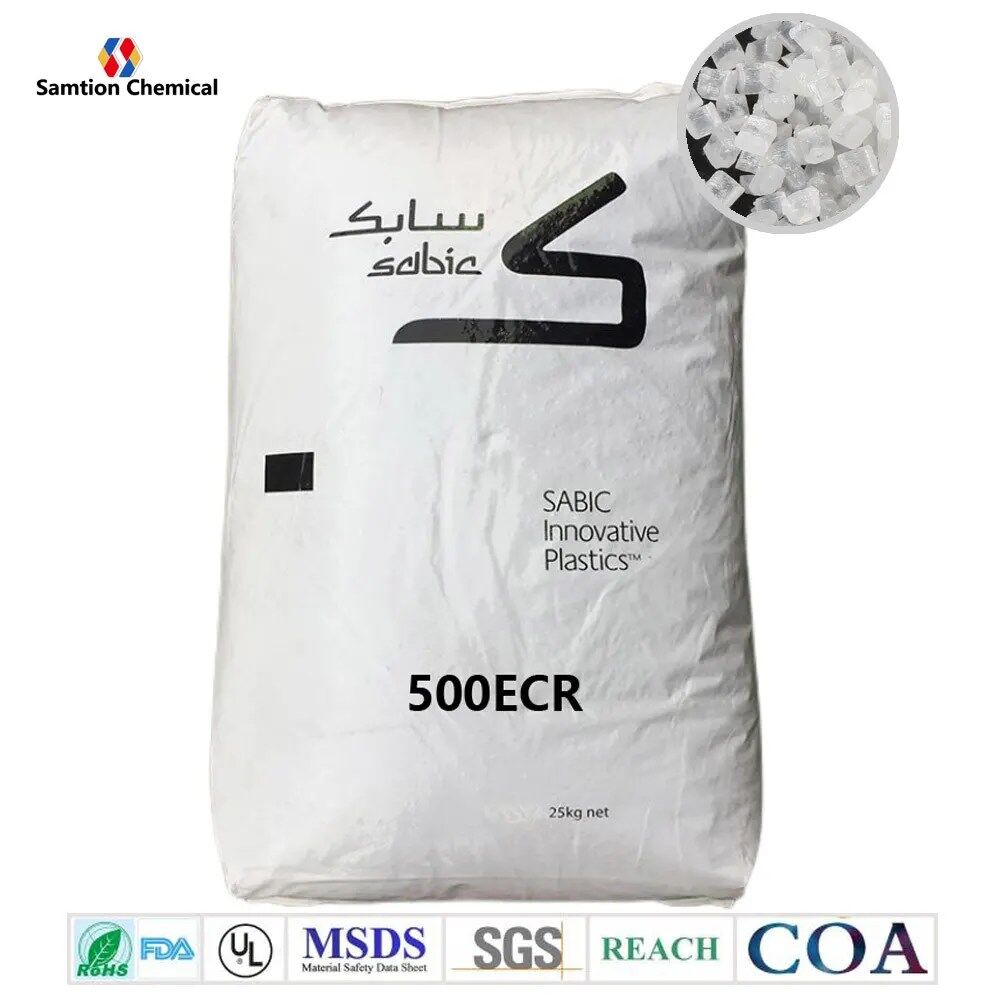

Sabic Lexan PC 500ECR Description
Lexan* 500ECR Polycarbonate (PC) resin is a 10% glass fiber filled, injection moldable grade. It is of non-chlorinated & non-brominated flame retardant systems with UL-94 V0 rating at 2.3mm. It is available in various opaque color options designed for applications requiring improved stiffness.
Sabic Lexan PC 500ECR Characteristic
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 66 | MPa | ASTM D 638 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 3440 | MPa | ASTM D 790 |
| Hardness, Rockwell M | 85 | – | ASTM D 785 |
| Hardness, Rockwell R | 124 | – | ASTM D 785 |
| Taber Abrasion, CS-17, 1 kg | 11 | mg/1000cy | ASTM D 1044 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 2136 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 106 | J/m | ASTM D 256 |
| Tensile Impact, Type “S” | 157 | kJ/m² | ASTM D 1822 |
| Falling Dart Impact (D 3029), 23°C | 101 | J | ASTM D 3029 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 154 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 146 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 142 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 130 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.27 | – | ASTM D 792 |
| Specific Volume | 0.8 | cm³/g | ASTM D 792 |
| Density | 1.245 | g/cm³ | ASTM D 792 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | >1.E+17 | Ohm-cm | ASTM D 257 |
| Dielectric Strength, in air, 3.2 mm | 17.7 | kV/mm | ASTM D 149 |
| Relative Permittivity, 1 MHz | 3.05 | – | ASTM D 150 |
| Dissipation Factor, 50/60 Hz | 0.0008 | – | ASTM D 150 |
For more information please download the datasheet
Company Profile
1.Professional focus
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
2.Perfect service
We have served many high-quality and excellent domestic and foreign enterprises, and We understand the customers’purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
3. Inventory supporting
Abundant inventory supporting resources, which are located in Guangzhou, Dongguan, Shenzhen free trade zone and Hong Kong. It has set up warehouses to stock goods, with a standing stock of more than 1000 tons, which can meet the timely spot purchase demand of customers and ensure the reliability and stability of the customer’s material supply chain.
4.Logistics distribution
We have long-term and stable logistics partners. According to the needs of customers, we formulate efficient istribution plans and deliver high-quality products to customers in time.
5. Speed advantage
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
6. Small batch type selection technical support
Accept small batch orders of 5kg at least; The rofessional engineer team can cooperate with customers to carry out material selection in the early stage of production, and provide corresponding material recommendations ccording to customer production and product requirements
7. Quality assurance
Our products are all from well-known manufacturers. Each batch of materials has various inspection reports and certificates including original factory certificate, MSDS, ROHS, SGS, reach,, EU, UL, COC / COA, etc.
