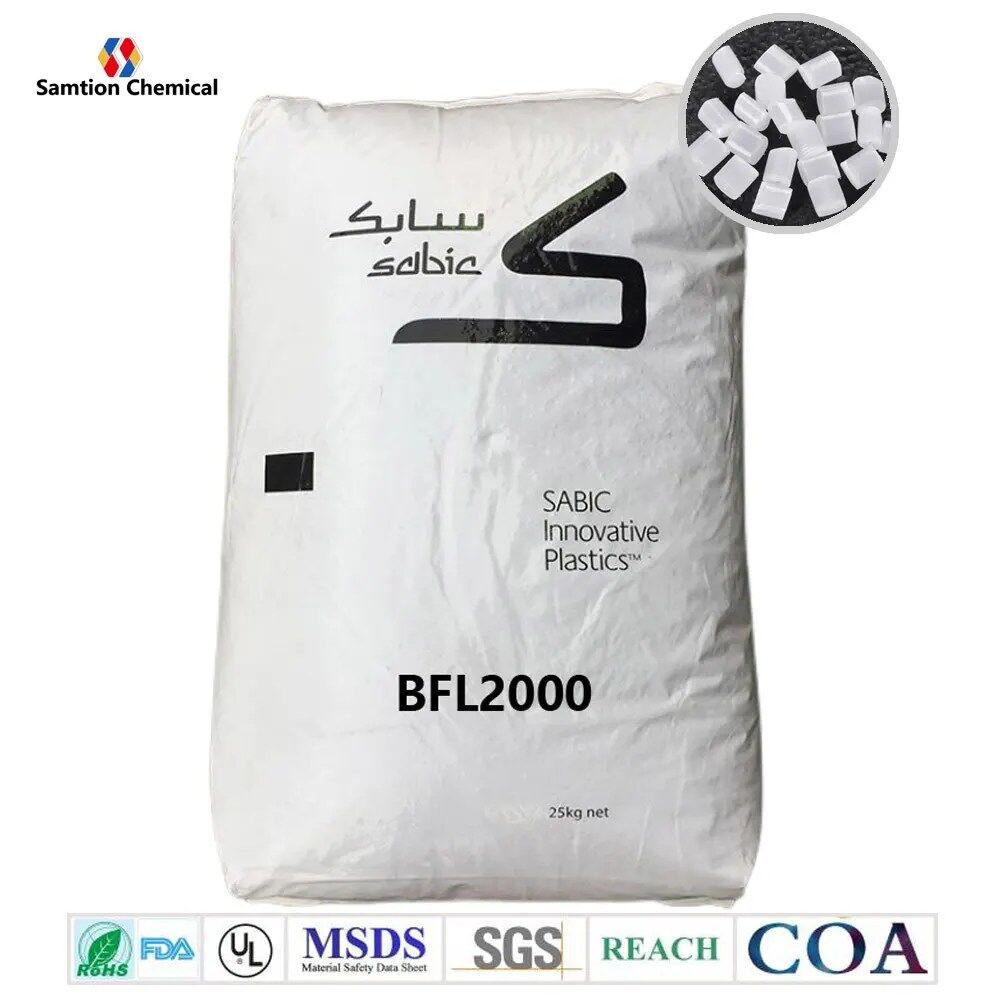

Sabic Lexan PC BFL2000 Description
Non-Brominated, non-chlorinated flame retardant PC. Available in opaque white colors.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 60 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 50 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 80 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2500 | MPa | ASTM D 638 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | NB | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 600 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 55 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*3 +23°C | NB | kJ/m² | ISO 180/1U |
| Charpy 23°C, Unnotch Edgew 80*10*3 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| Charpy -30°C, Unnotch Edgew 80*10*3 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 138 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 125 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 127 | °C | ASTM D 648 |
| CTE, -30°C to 30°C, flow | 7.E-05 | 1/°C | ASTM D 696 |
| CTE, -30°C to 30°C, xflow | 7.E-05 | 1/°C | ASTM D 696 |
| CTE, 23°C to 80°C, flow | 7.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 80°C, xflow | 7.E-05 | 1/°C | ISO 11359-2 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.29 | – | ASTM D 792 |
| Water Absorption, 24 hours | 0.15 | % | ASTM D 570 |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.5 – 0.7 | % | SABIC Method |
| Mold Shrinkage, flow, 3.2 mm | 0.5 – 0.7 | % | SABIC Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.5 – 0.7 | % | SABIC Method |
| Melt Flow Rate, 300°C/1.2 kgf | 32 | g/10 min | ASTM D 1238 |
| Density | 1.29 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.35 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.15 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 30 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Dielectric Strength, in oil, 1.6 mm | 21 | kV/mm | ASTM D 149 |
| Volume Resistivity | >1.E+15 | Ohm-cm | IEC 60093 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-2 Flame Class Rating (3) | 0.75 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 1 | mm | IEC 60695-2-12 |
| Glow Wire Ignitability Temperature, 1.0 mm | 850 | °C | IEC 60695-2-13 |
| Oxygen Index (LOI) | 36 | % | ISO 4589 |
| Source GMD, last updated:11/18/2003 | |||
For more information please download the datasheet
