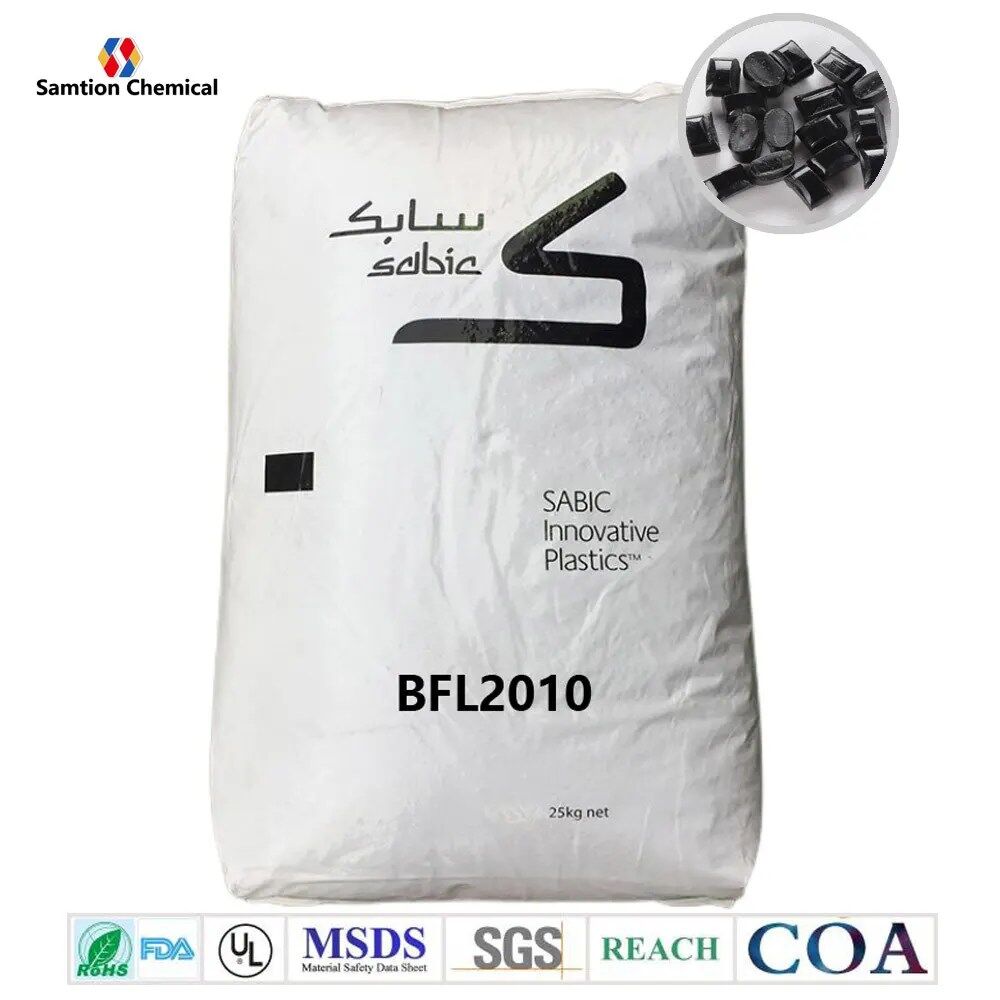

Sabic Lexan PC BFL2010 Description
Non-brominated, non-chlorinated flame retardant, glass reinforced PC with improved flow. Available in opaque colors.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 57 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 46 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 4.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 15 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 3960 | MPa | ASTM D 638 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | NB | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 110 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | N/A | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 61 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 143 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 141 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 135 | °C | ASTM D 648 |
| CTE, -30°C to 30°C, flow | 5.E-05 | 1/°C | ASTM D 696 |
| CTE, -30°C to 30°C, xflow | 5.E-05 | 1/°C | ASTM D 696 |
| CTE, 23°C to 80°C, flow | 5.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 80°C, xflow | 5.E-05 | 1/°C | ISO 11359-2 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.3 | – | ASTM D 792 |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.4 – 0.6 | % | SABIC Method |
| Melt Flow Rate, 300°C/1.2 kgf | 14.4 | g/10 min | ASTM D 1238 |
| Density | 1.27 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.35 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.15 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 12 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Dielectric Strength, in air, 1.6 mm | 19.5 | kV/mm | ASTM D 149 |
| Volume Resistivity | >1.E+15 | Ohm-cm | IEC 60093 |
| Surface Resistivity, ROA | >1.E+15 | Ohm | IEC 60093 |
| Relative Permittivity, 50/60 Hz | 3 | – | IEC 60250 |
| Relative Permittivity, 1 MHz | 3 | – | IEC 60250 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 1 | mm | IEC 60695-2-12 |
| Glow Wire Ignitability Temperature, 1.0 mm | 825 | °C | IEC 60695-2-13 |
| Oxygen Index (LOI) | 38 | % | ISO 4589 |
| Source GMD, last updated:12/17/2003 | |||
| Processing | |||
For more information please download the datasheet
