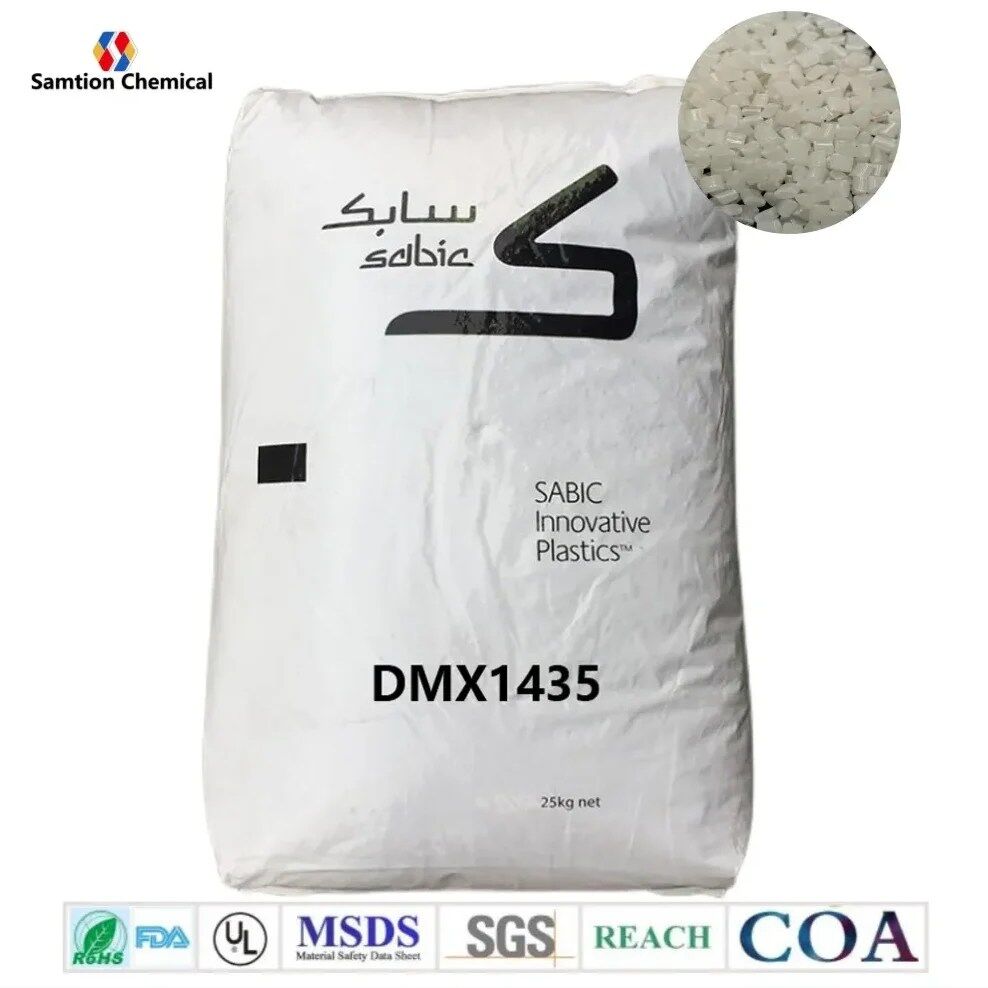

Sabic Lexan PC DMX1435 Description
Lexan* DMX1435 is a UV stabilized standard flow polycarbonate copolymer resin with improved scratch resistance.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 80 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 65 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 70 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2900 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 120 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2600 | MPa | ASTM D 790 |
| Hardness, Rockwell L | 108 | – | ASTM D 785 |
| Hardness, Rockwell M | 93 | – | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | NB | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 30 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 30 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 30 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*3 +23°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*3 -30°C | 45 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*3 +23°C | 5 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*3 -30°C | 4 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 139 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 133 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 119 | °C | ASTM D 648 |
| CTE, -40°C to 95°C, flow | 7.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 95°C, xflow | 7.E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.2 | – | ASTM D 792 |
| Specific Volume | 0.85 | cm³/g | ASTM D 792 |
| Density | 1.17 | g/cm³ | ASTM D 792 |
| Water Absorption, 24 hours | 0.08 | % | ASTM D 570 |
| Water Absorption, equilibrium, 23C | 0.28 | % | ASTM D 570 |
| Water Absorption, 50% RH, equilib | 0.13 | % | ASTM D 570 |
| Moisture Absorption, 50% RH, 24 hrs | 0.04 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 – 0.8 | % | SABIC Method |
| Melt Flow Rate, 300°C/1.2 kgf | 14.5 | g/10 min | ASTM D 1238 |
| Density | 1.17 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.27 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.13 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 13 | cm³/10 min | ISO 1133 |
| OPTICAL | Value | Unit | Standard |
| Light Transmission | 88 | % | ASTM D 1003 |
| Haze | <0.8 | % | ASTM D 1003 |
| Refractive Index | 1.584 | – | ASTM D 542 |
| Refractive Index | 1.584 | – | ISO 489 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1 | mm | UL 94 |
| Source GMD, last updated:02/27/2007 | |||
