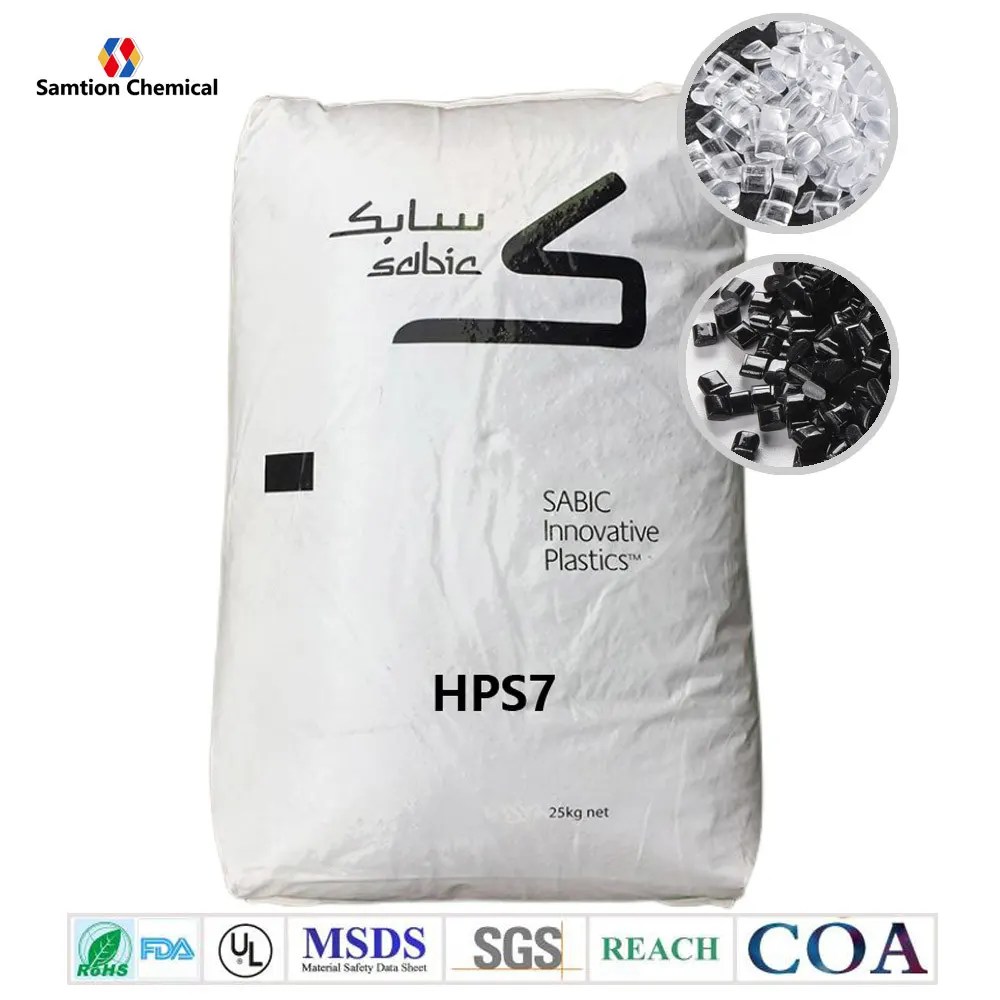

Sabic Lexan HPS7 Description
Low flow polycarbonate. For medical devices and pharmaceutical applications. Healthcare management of change, biocompatible (ISO10993 or USP Class VI). EtO, steam, e-beam, and gamma sterilizable. Contains mold release.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 62 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 72 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 6.5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 125 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2270 | MPa | ASTM D 638 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 2700 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 935 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 785 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 82 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 145 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 141 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 129 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 141 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 132 | °C | ASTM D 648 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 128 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.2 | – | ASTM D 792 |
| Water Absorption, 24 hours | 0.14 | % | ASTM D 570 |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.5 – 0.7 | % | SABIC Method |
| Mold Shrinkage, flow, 3.2 mm | 0.5 – 0.7 | % | SABIC Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.5 – 0.7 | % | SABIC Method |
| Melt Flow Rate, 300°C/1.2 kgf | 5 | g/10 min | ASTM D 1238 |
| Melt Flow Rate, 300°C/5.0 kgf | 24 | g/10 min | ASTM D 1238 |
| Density | 1.19 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.26 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.1 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 5 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:08/27/2004 | |||
For more information please download the datasheet
