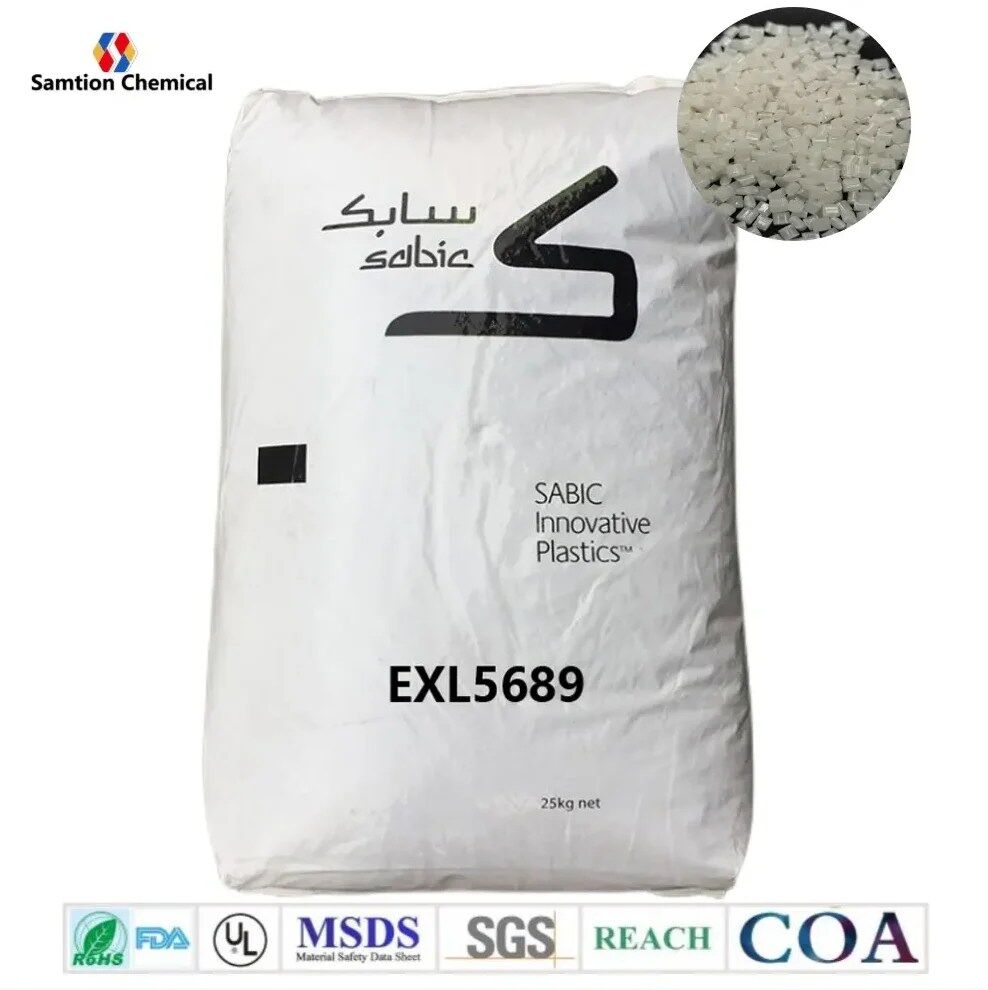

Sabic Lexan PC EXL5689 Description
Lexan* EXL5689 polycarbonate (PC) siloxane copolymer resin is a 9% GF reinforced, UV stabilized, flame retardant injection molding grade. This medium flow resin combines UL94 V0 @ 1.5mm, 5VB @ 3.0mm flame retardancy based on non-chlorine, non-bromine FR agents with excellent processability and improved release performance. Lexan EXL5689 resin offers much improved impact strength and ductility over conventional GF reinforced PC resins. This product is available in limited opaque colors (BK, WH & GY) only and may be an excellent candidate for a broad range of applications, i.e. electrical and electronic enclosure applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 55 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 44 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 4.4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 15 | % | ASTM D 638 |
| Flexural Stress, yield, 2 mm/min | 96 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 3400 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 340 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 150 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 40 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*3 +23°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*3 -30°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*3 +23°C | 25 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*3 -30°C | 10 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 146 | °C | ASTM D 1525 |
| CTE, -40°C to 40°C, flow | 4.7E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 7.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 4.7E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 7.E-05 | 1/°C | ISO 11359-2 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.26 | – | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.2 – 0.6 | % | SABIC Method |
| Melt Flow Rate, 300°C/1.2 kgf | 9 | g/10 min | ASTM D 1238 |
| Density | 1.26 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.15 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.4 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 8 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Comparative Tracking Index (UL) {PLC} | 3 | PLC Code | UL 746A |
| Comparative Tracking Index | 175 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94HB Flame Class Rating 2nd value (3)(4) | 0.75 | mm | UL 94 by GE |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 1.5 | mm | UL 94 by GE |
| UL Compliant, 94-5VB Rating (3)(4) | 3 | mm | UL 94 by GE |
| Source GMD, last updated:09/08/2006 | |||
For more information please download the datasheet
