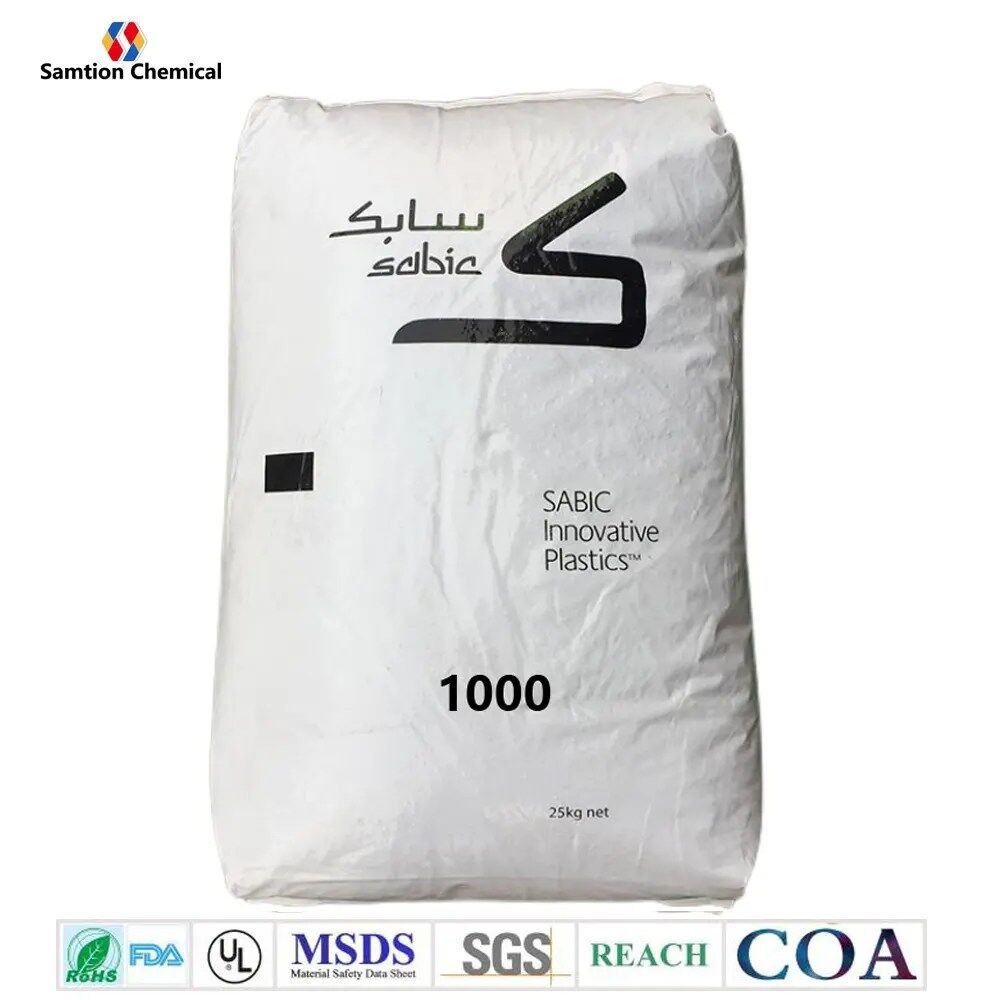

Sabic Ultem 1000 DESCRIPTION
ULTEM 1000 Resin is an unreinforced amorphous polyetherimide (PEI) resin that may offer a high glass transition temperature (Tg) of 217°C. Features are excellent mechanical, electrical and dimensional properties up to high temperatures. The material may offer very good chemical resistance for an amorphous material and is inherently flame retardant offering UL94 V0 and 5V ratings and aerospace FAR 25.853 compliance. The material is RoHS compliant and the natural, uncolored, material is halogen free according to standards IEC 61249-2-21 , IPC 4101E and JEDEC JS709B. For colored variants compliance needs to be checked case by case. The base material is transparent amber colored but is also available in custom colors – transparent and opaque. ISCC+ certified renewable bio-based solutions are available for this grade via differentiated color nomenclature.
Property
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 110 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 60 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 3580 | MPa | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 165 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 3510 | MPa | ASTM D 790 |
| Hardness, Rockwell M | 109 | – | ASTM D 785 |
| Taber Abrasion, CS-17, 1 kg | 10 | mg/1000cy | ASTM D 1044 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1335 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 53 | J/m | ASTM D 256 |
| Izod Impact, Reverse Notched, 3.2 mm | 1335 | J/m | ASTM D 256 |
| Gardner, 23°C | 36 | J | ASTM D 3029 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 218 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 210 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 201 | °C | ASTM D 648 |
| CTE, -20°C to 150°C, flow | 5.58E-05 | 1/°C | ASTM E 831 |
| CTE, -20°C to 150°C, xflow | 5.4E-05 | 1/°C | ASTM E 831 |
| Thermal Conductivity | 0.22 | W/m-°C | ASTM C 177 |
| Relative Temp Index, Elec | 170 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 170 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 170 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.27 | – | ASTM D 792 |
| Water Absorption, 24 hours | 0.25 | % | ASTM D 570 |
| Water Absorption, equilibrium, 23C | 1.25 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 – 0.7 | % | SABIC Method |
| Melt Flow Rate, 337°C/6.6 kgf | 9 | g/10 min | ASTM D 1238 |
| Poisson’s Ratio | 0.3 | – | ASTM D 638 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 1.E+17 | Ohm-cm | ASTM D 257 |
| Dielectric Strength, in air, 1.6 mm | 32.7 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 1.6 mm | 27.9 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 3.2 mm | 19.6 | kV/mm | ASTM D 149 |
| Relative Permittivity, 100 Hz | 3.15 | – | ASTM D 150 |
| Relative Permittivity, 1 kHz | 3.15 | – | ASTM D 150 |
| Dissipation Factor, 100 Hz | 0.0015 | – | ASTM D 150 |
| Dissipation Factor, 1 kHz | 0.0012 | – | ASTM D 150 |
| Dissipation Factor, 2450 MHz | 0.0025 | – | ASTM D 150 |
| Arc Resistance, Tungsten {PLC} | 5 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 1 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 2 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 3 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 4 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| CSA (See File for complete listing) | LS88480 | File No. | CSA LISTED |
| Oxygen Index (LOI) | 47 | % | ASTM D 2863 |
| NBS Smoke Density, Flaming, Ds 4 min | 0.7 | – | ASTM E 662 |
| Source GMD, last updated:02/24/2003 | |||
Processing
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 150 | °C |
| Drying Time | 4 – 6 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 350 – 400 | °C |
| Nozzle Temperature | 345 – 400 | °C |
| Front – Zone 3 Temperature | 345 – 400 | °C |
| Middle – Zone 2 Temperature | 340 – 400 | °C |
| Rear – Zone 1 Temperature | 330 – 400 | °C |
| Mold Temperature | 135 – 165 | °C |
| Back Pressure | 0.3 – 0.7 | MPa |
| Screw Speed | 40 – 70 | rpm |
| Shot to Cylinder Size | 40 – 60 | % |
| Vent Depth | 0.025 – 0.076 | mm |
| Parameter | ||
| Extrusion Blow Molding | Value | Unit |
| Drying Temperature | 140 – 150 | °C |
| Drying Time | 4 – 6 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.01 – 0.02 | % |
| Melt Temperature (Parison) | 320 – 355 | °C |
| Barrel – Zone 1 Temperature | 325 – 350 | °C |
| Barrel – Zone 2 Temperature | 330 – 355 | °C |
| Barrel – Zone 3 Temperature | 330 – 355 | °C |
| Barrel – Zone 4 Temperature | 330 – 355 | °C |
| Adapter – Zone 5 Temperature | 330 – 355 | °C |
| Head – Zone 6 – Top Temperature | 330 – 355 | °C |
| Head – Zone 7 – Bottom Temperature | 330 – 355 | °C |
| Screw Speed | 10 – 70 | rpm |
| Mold Temperature | 65 – 175 | °C |
| Die Temperature | 325 – 355 | °C |
| Source GMD, last updated:02/24/2003 | ||
