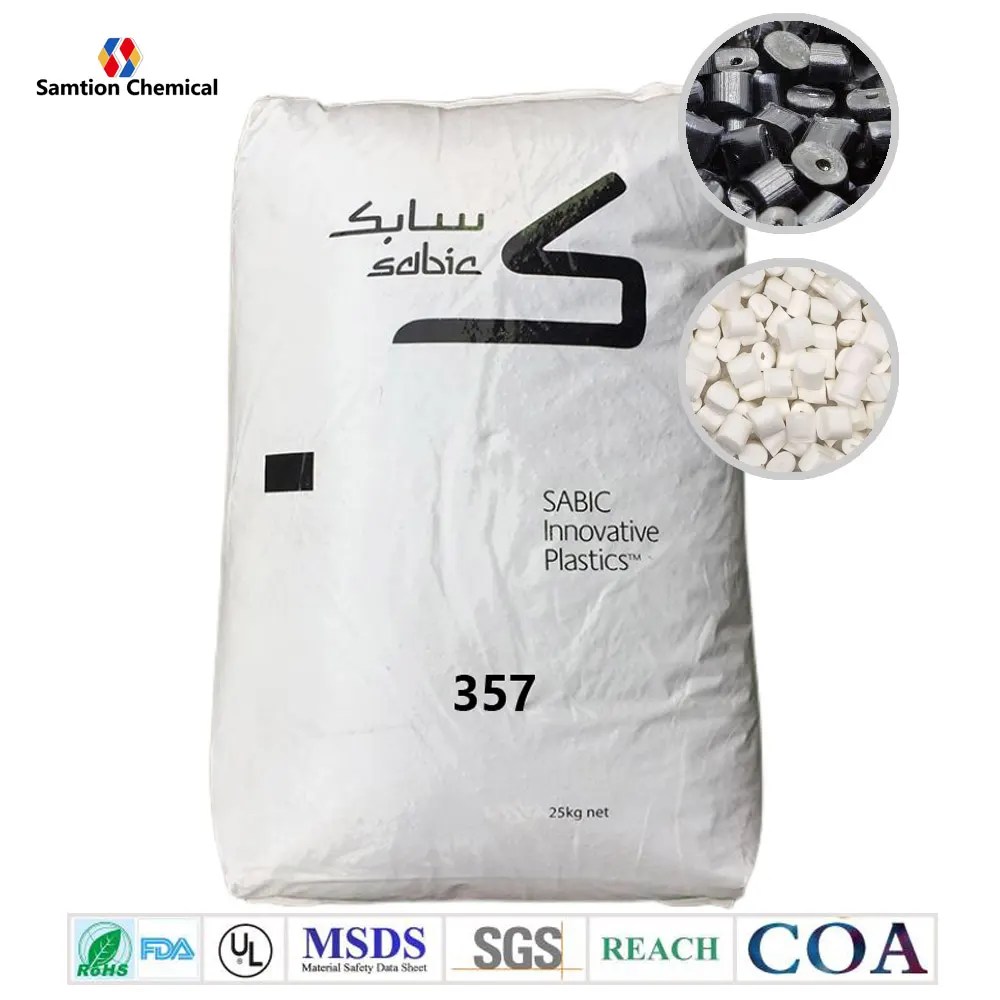

Sabic Valox 357 DESCRIPTION
Sabic Valox 357 resin is PBT, Unreinforced, impact modified, UL94V-0 rated. Applications like bobbins, switches and enclosures.
Property
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 41 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 48 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 54 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2020 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 78 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 82 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2100 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 117 | – | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | NB3204 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 319 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 153 | J/m | ASTM D 256 |
| Gardner, 23°C | 43 | J | ASTM D 3029 |
| Modified Gardner, 23°C | 43 | J | ASTM D 3029 |
| Instrumented Impact Total Energy, 23°C | 35 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 134 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 135 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 98 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 137 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 98 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 9.18E-05 | 1/°C | ASTM E 831 |
| CTE, 60°C to 138°C, flow | 1.24E-04 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 120 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 120 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 140 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.35 | – | ASTM D 792 |
| Specific Volume | 0.74 | cm³/g | ASTM D 792 |
| Water Absorption, 24 hours | 0.08 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 1 – 1.4 | % | SABIC Method |
| Mold Shrinkage, flow, 0.75-2.3 mm | 0.8 – 1.1 | % | SABIC Method |
| Mold Shrinkage, flow, 2.3-4.6 mm | 1 – 1.4 | % | SABIC Method |
| Mold Shrinkage, xflow, 0.75-2.3 mm | 0.9 – 1.3 | % | SABIC Method |
| Mold Shrinkage, xflow, 2.3-4.6 mm | 1.2 – 1.6 | % | SABIC Method |
| Melt Flow Rate, 250°C/5.0 kgf | 9.6 | g/10 min | ASTM D 1238 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | >1.2E+16 | Ohm-cm | ASTM D 257 |
| Dielectric Strength, in air, 3.2 mm | 18.5 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 1.6 mm | 25.1 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 3.2 mm | 18.5 | kV/mm | ASTM D 149 |
| Relative Permittivity, 100 Hz | 3.2 | – | ASTM D 150 |
| Relative Permittivity, 1 MHz | 3.2 | – | ASTM D 150 |
| Dissipation Factor, 100 Hz | 0.003 | – | ASTM D 150 |
| Dissipation Factor, 1 MHz | 0.03 | – | ASTM D 150 |
| Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 2 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 3 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 3 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 2 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 0.45 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 0.63 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 2.99 | mm | UL 94 |
| CSA (See File for complete listing) | LS88480 | File No. | CSA LISTED |
| Oxygen Index (LOI) | 30 | % | ASTM D 2863 |
| UV-light, water exposure/immersion | F2 | – | UL 746C |
| Source GMD, last updated:09/26/2008 | |||
Processing
Parameter Injection MoldingValueUnitDrying Temperature120°CDrying Time3 – 4hrsDrying Time (Cumulative)12hrsMaximum Moisture Content0.02%Melt Temperature250 – 265°CNozzle Temperature245 – 260°CFront – Zone 3 Temperature250 – 265°CMiddle – Zone 2 Temperature245 – 260°CRear – Zone 1 Temperature240 – 255°CMold Temperature50 – 75°CBack Pressure0.3 – 0.7MPaScrew Speed50 – 100rpmShot to Cylinder Size40 – 80%Vent Depth0.025 – 0.038mmSource GMD, last updated:09/26/2008
Hot-sale product(in stock) PBT: 325,325FC,310,310SE0 PC+PBT: 357 357U,5220U,V3900WX PBT + glass filled: DR51, DR48, 420 420se0, 553, 508, 420HP
For more information please download the datasheet
